THE PGM1.0 PIPE SHAVER
The PGM1.0 pipe shaver is a mid-size one of the PG products. All the models of the PG products have been listed in the table below.
型号 含义 适用管内径范围（mm） PGS1.0 1.0版小管径打磨机 250-400 PGM1.0 1.0版中管径打磨机
400-600 PGL1.0 1.0版大管径打磨机 650-1000 The PGM1.0 pipe shaver has been designed to prepare a tapered or straight spigot on the end of a FRP pipe in all the size from 400mm (16’’) to 600mm (24’’). It is composed of a locating device and a shaving frame. The locating device which is available for all the size of pipes from 400mm to 600mm, slips into the pipe and then expands to grip the inside of the pipe. A FRP pipe, whether firmly fastened to a stable structure or not, can be shaved efficiently by the machine. The light and compact design contributes to its particular application to pipe shaving on site.

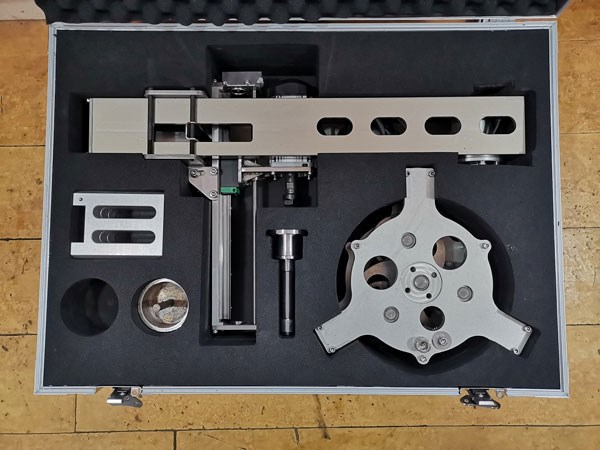

PGM1.0 pipe shaver

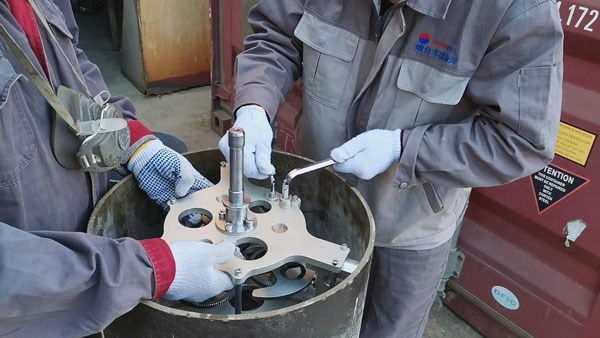

Install the rotating spindle

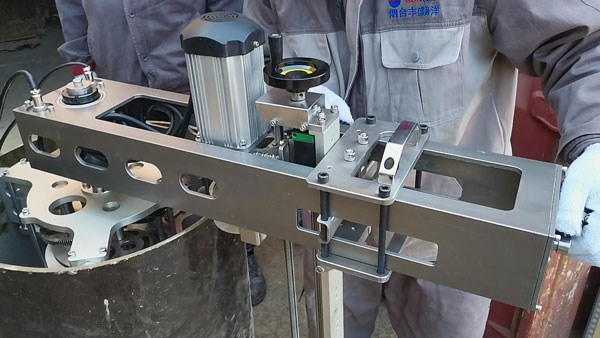

polish

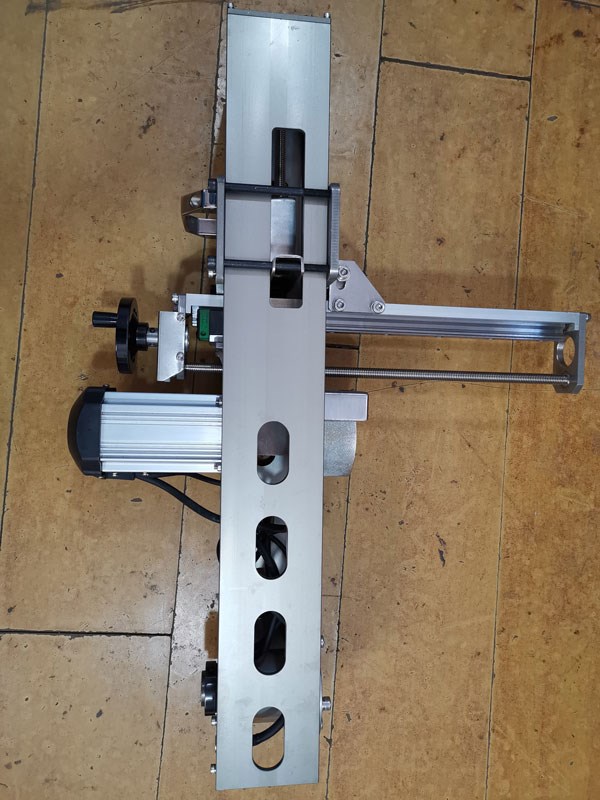

Polishing rack

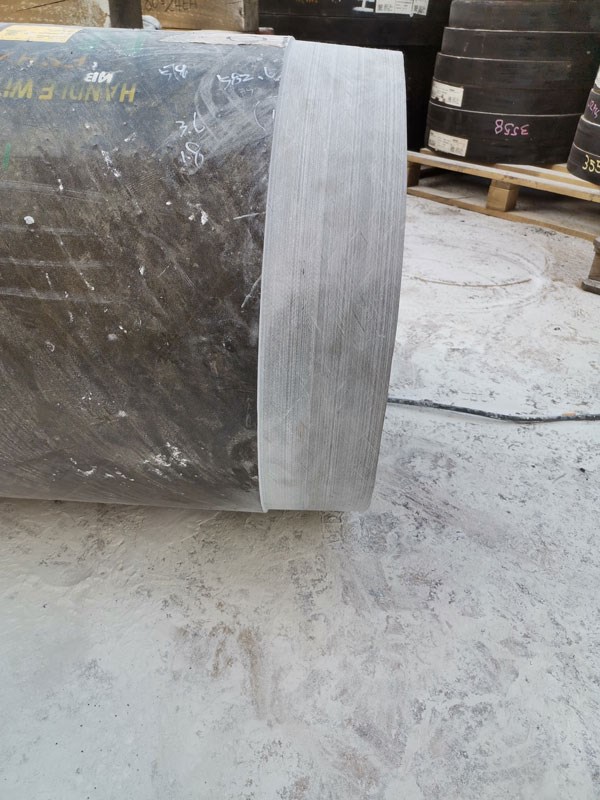

Polish completed 24 inch fiberglass pipe

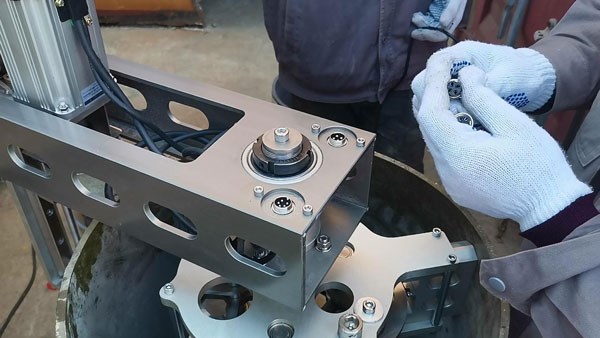

power on

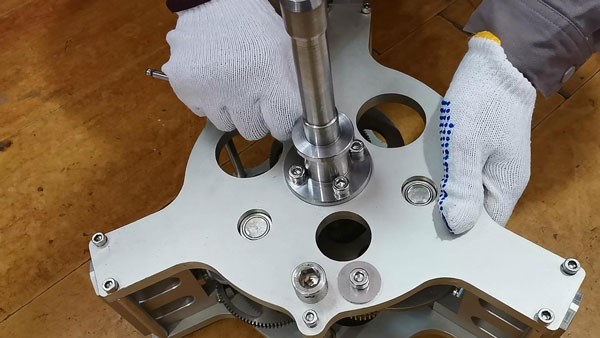

Install tension plate
